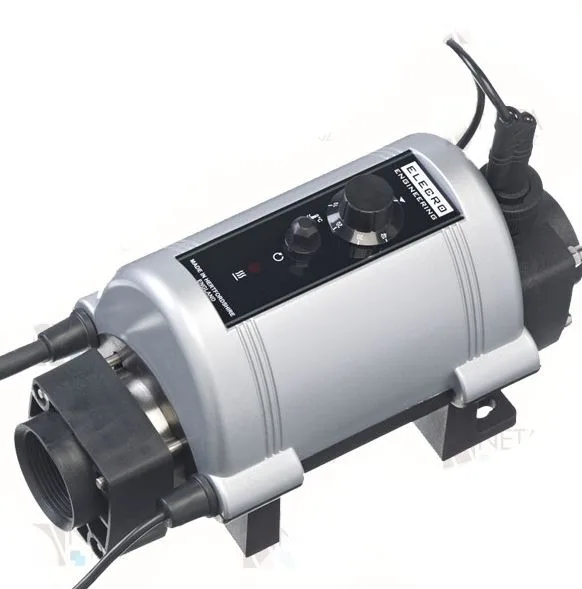

ELECRO ISITICI SPA 5 KW TITANIUM

\n
• Sağlam, dayanıklı yapı
\n
• Easy installation
\n
• Compact design
\n
• Titanium heating element
\n
• 316 Stainless Steel flow tube
\n
• Optional analogue control with 1°C Differential
\n
• Optional ultra-reliable flow switch allows safe operation with 1m³/h
\n
• Optional safety thermal cut-out (60°C manual reset)
\n

Construction

Construction consists of a flow tube which is fitted with Inlet and Outlet mouldings manufactured from specially formulated polymer alloy material.
\n
\nAs standard the Nano spa heater is supplied without any control circuit components, you can then select as many or as few options you would like from the extensive list of available options (below) – allowing complete flexibility and suitability to your requirements.
\n
\nOptions Available:

\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Minimum Flow Requirement	1m³ (1,000-litres) per hour
Maximum Flow Velocity	17m³ (17,000-litres) per hour
Heating Element	Titanium
Flow Tube	BS 316 Stainless Steel
Optional \n Control Thermostat	0ºC > 45ºC (1.0ºC Differential) \n
Optional \n Safety Thermal cut-out	60ºC (Manual reset) \n
Optional \n Flow Switch	Gold tipped reed switch with Titanium fulcrum pin
Wiring	High temperature, silicone sheathed, multi-strand copper conductors
Seals	High temperature special formula polymer
Working Pressure	4 bar maximum
Water Connections	1½" BSP female thread
Supplied ABS Unions	For 1½" / 50-mm rigid pipe

\n\n

 \n

Tüm ölçüler mm (Tüm ölçüler mm cinsindendir)
